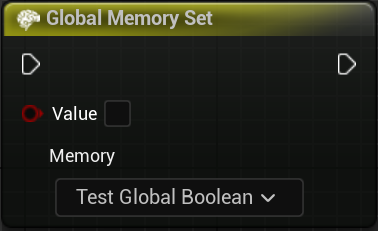

Global Memory Set
Pins
Input
| Name | Type | Description |
|---|---|---|
| Execution Line In | Execution | Execution Line Input |
| Global Memory Id | Name | The ID of the global memory variable to set (only shown when “Use Pins For Ids” is enabled) |
| Value | Variable | The value to set for the global memory variable (type depends on the memory type) |
Output
| Name | Type | Description |
|---|---|---|
| Execution Line Out | Execution | Execution Line Output |
On-Node Properties
| Name | Description | |
|---|---|---|
| Memory | Name | The ID of the global memory variable to set (only shown when “Use Pins For Ids” is disabled) |
Additional Properties
| Name | Type | Description |
|---|---|---|
| Use Pins For Ids | Boolean | If set to true, the Global Memory Id will be available as an input pin instead of a property |
Script Reference
global.memory.set <global memory id> <variable name>
